Quit wasting time searching for tracer wires

“Custom or Special imprinting normally requires 2 to 4 week lead time.”

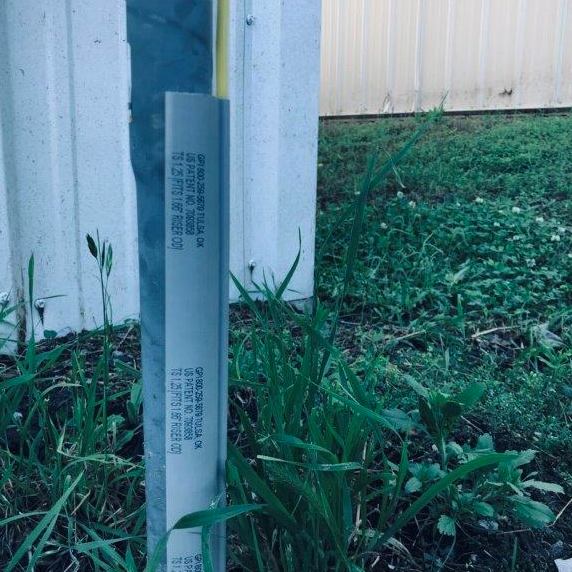

The GPI Tracer Snap is a “must-have” product that attaches to your riser and protects your tracer wire. This ensures that your crews will easily locate the wire when they need it, which saves you time and money today and in the future.

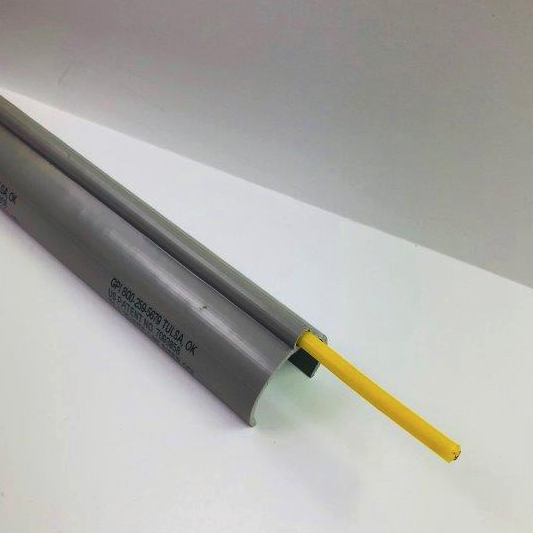

Protect the tracer wire above ground by inserting it into the RAD^® Tracer Snap. Damage caused by external factors is greatly reduced and tracer wires can be more easily accessed when they are needed.

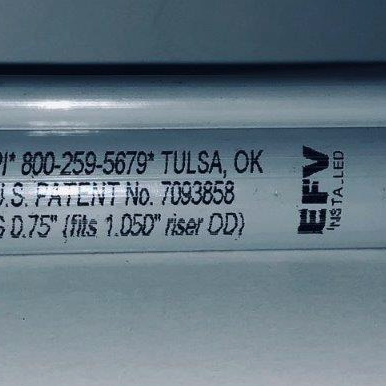

US Patent No. 7093858 plus others possibly pending

BENEFITS

Priced extremely competitive
Constructed of weatherable rigid PVC/Acrylic alloy compound

nload PDF SheetNon-corrosive and weather resistant

Quick and easy to install
Smooth surface makes it resistant to contamination
Fire Resistant and reusable

Specs

Short Video

Sizing

Available for new larger diameter tracer wire .250″ +/- .05

PRODUCT	RISER SIZE	PART NO.	RECOMMENDED O.D.	UNIT LENGTH	STD. BOX QTY.

Tracer Snap	3/4″	TS34X6	1.050″	6″	350
Tracer Snap	3/4″	TS34X12	1.050″	12″	150
Tracer Snap	3/4″	TS34X72	1.050″	6′ bulk	40 piece bundle

Tracer Snap	1″	TS1X6	1.310″	6″	300
Tracer Snap	1″	TS1X12	1.310″	12″	150
Tracer Snap	1″	TS1X72	1.310″	6′ bulk	40 piece bundle

Tracer Snap	1-1/4″	TS125X6	1.660″	6″	200
Tracer Snap	1-1/4″	TS125X12	1.660″	12″	100
Tracer Snap	1-1/4″	TS125X72	1.660″	6′ bulk	40 piece bundle

Tracer Snap	1-1/2″	TS150X6	2.000″	6″	150
Tracer Snap	1-1/2″	TS150X12	2.000″	12″	100
Tracer Snap	1-1/2″	TS150X72	2.000″	6′ bulk	40 piece bundle

Tracer Snap	2″	TS2X6	2.400″	6″	100
Tracer Snap	2″	TS2X12	2.400″	12″	75
Tracer Snap	2″	TS2X72	2.400″	6′ bulk	40 piece bundle

Tracer Snap	2-1/2″	TS250X6	2.880″	6″	90
Tracer Snap	2-1/2″	TS250X12	2.880″	12″	45
Tracer Snap	2-1/2″	TS250X72	2.880″	6′ bulk	40 piece bundle

Moisture Entrapment

The Tracer Snap was designed with safety, functionality and simplicity as primary goals. The virgin grade extrusion material is from the PVC family and is fire resistant, smooth, rigid and highly resistant to any type of moisture adhesion. The Tracer Snap’s smooth surface contains mold lines which provide minuscule draining paths for any liquid and the surface does not entrap or absorb moisture. The smooth surfaces encourages any liquid to leave and escape from the pipe attachment.

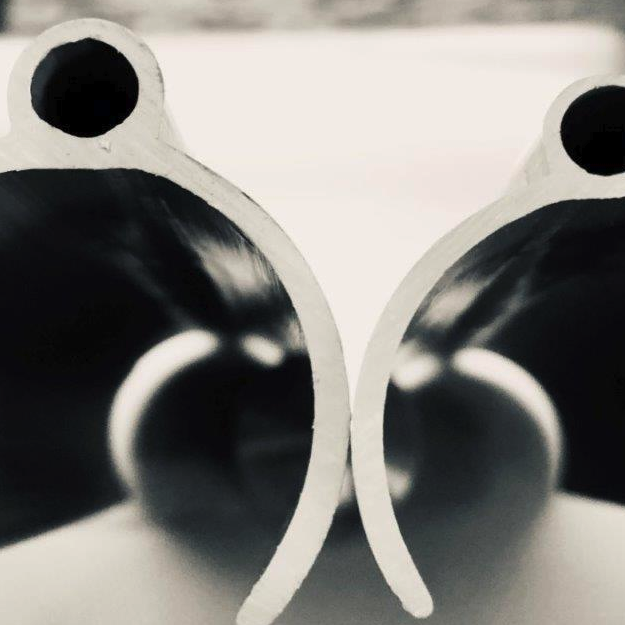

In addition, the Tracer Snap extrusions are not a complete encirclement of the riser. Attached to the risers, the non-concentric characteristics of the Tracer Snap cannot trap moisture.

Coupled with the disheveled surfaces of a normal gas riser and coating, the TS provides moisture escape routes to drain moister between the Tracer Snap and the riser.

We have sold many Tracer Snaps over the past 10 years and have not had “any” claims of moisture entrapment.

In 1991, while working with gas distributions companies, we were asked if we could construct a product that would simplify the removal of abandon gas meters while maintaining proper riser placements. Our first product manufactured was the GPI RAD® Meter Bar.

Since that time, we have added to our product line by building products that are cost effective and beneficial to the gas distribution industry and are designed to fill a specific requirement for those markets.

Contact us today to see how we can save you time and money immediately – while providing the products which will save you money daily!
